Grant Road, Wandsworth

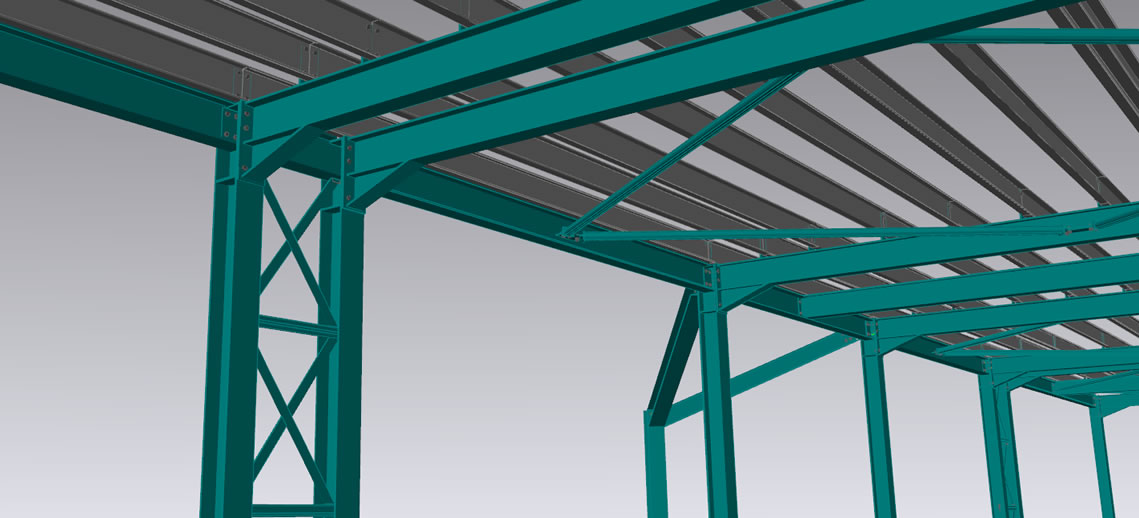

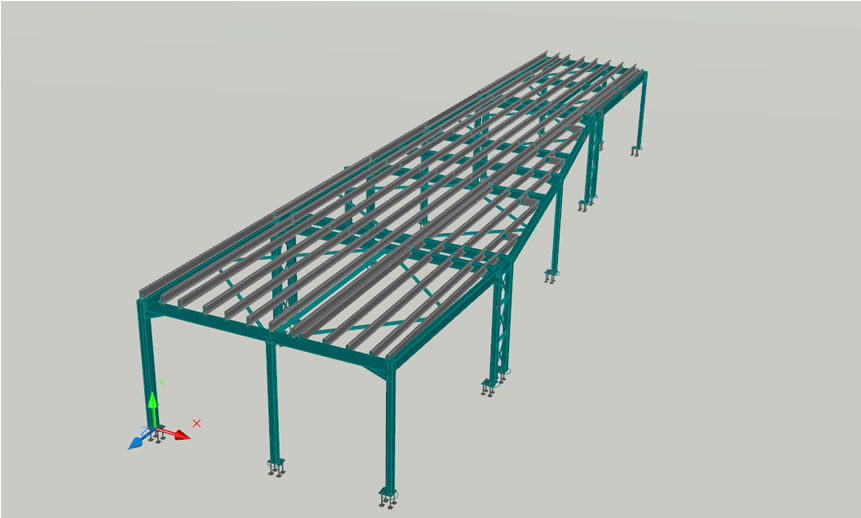

New single storey structural frame with cold rolled purlins to create a new walk in medical facility at Grant Road, Wandsworth. Steel frame detailed to fit tight along existing fašade of brickwork railway arches.



Click on a thumbnail image for a more detailed view
