The Anthropologist Bar

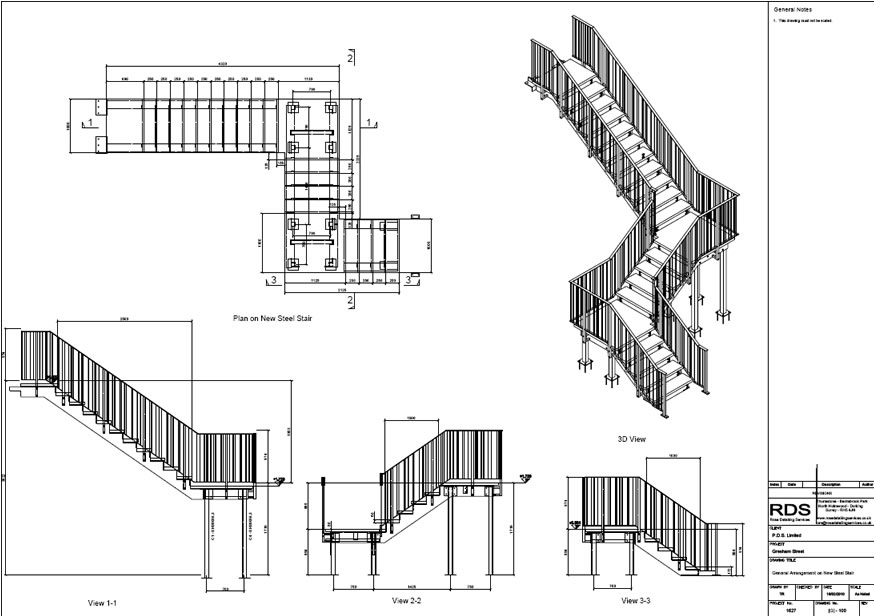

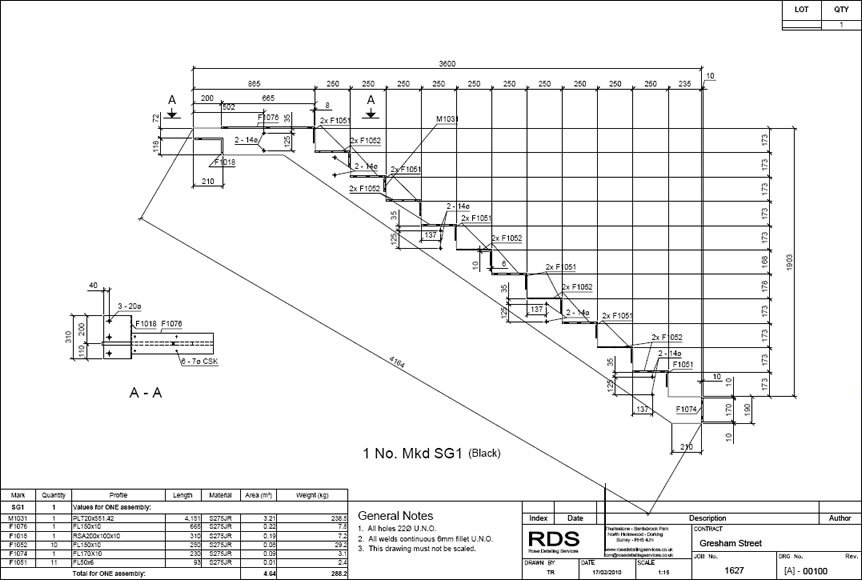

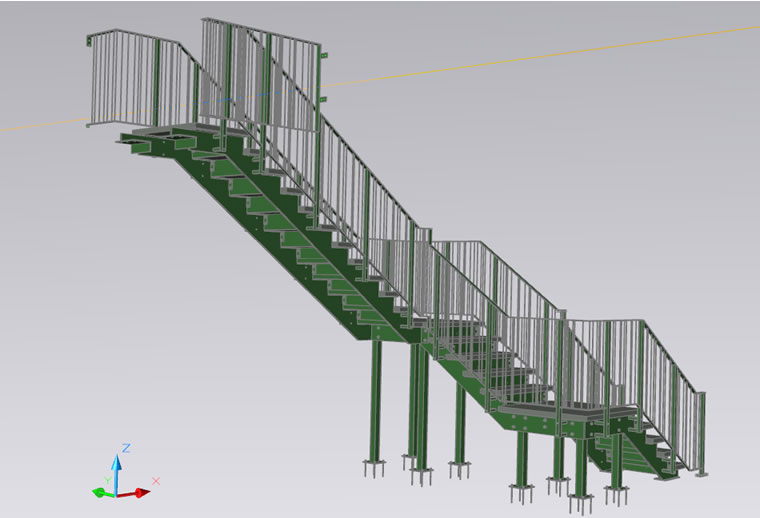

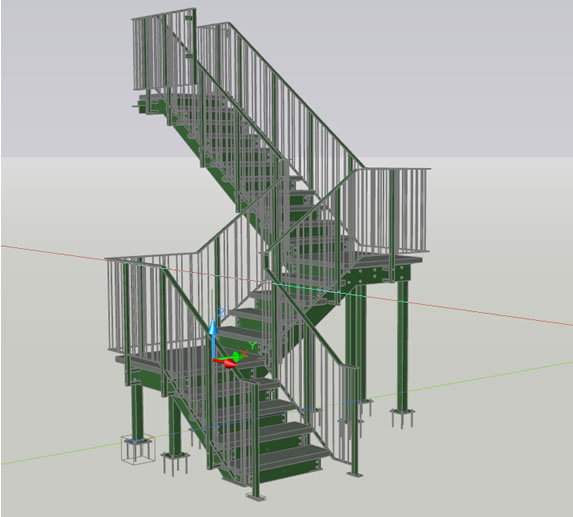

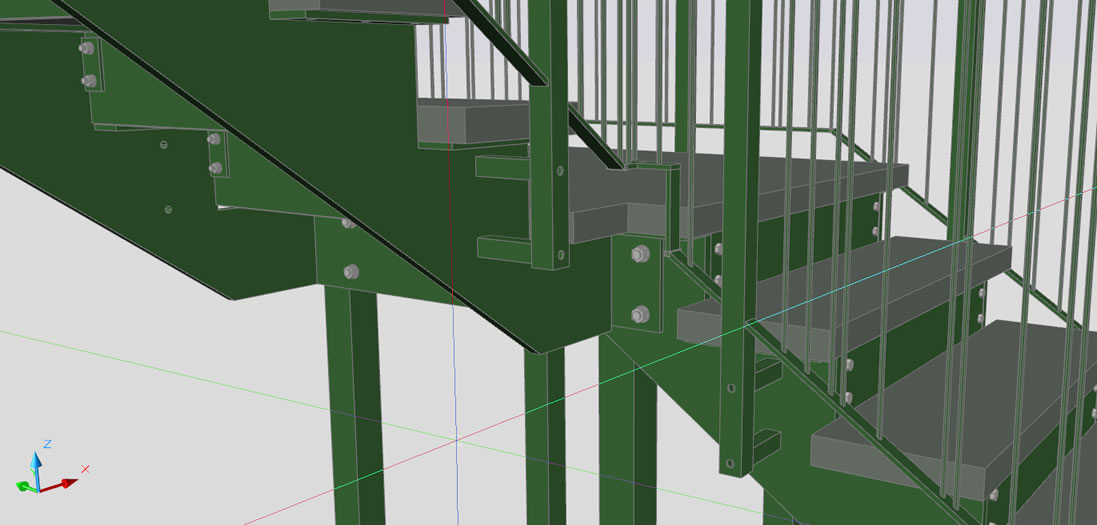

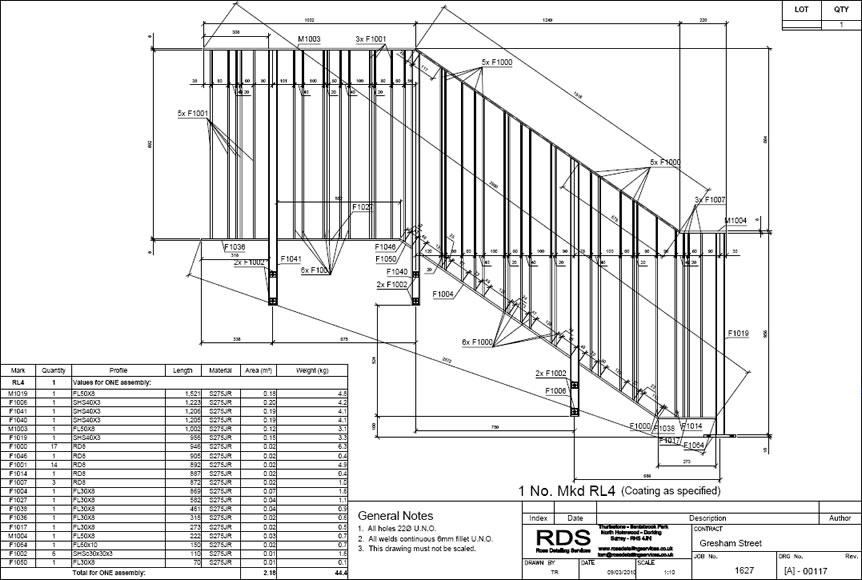

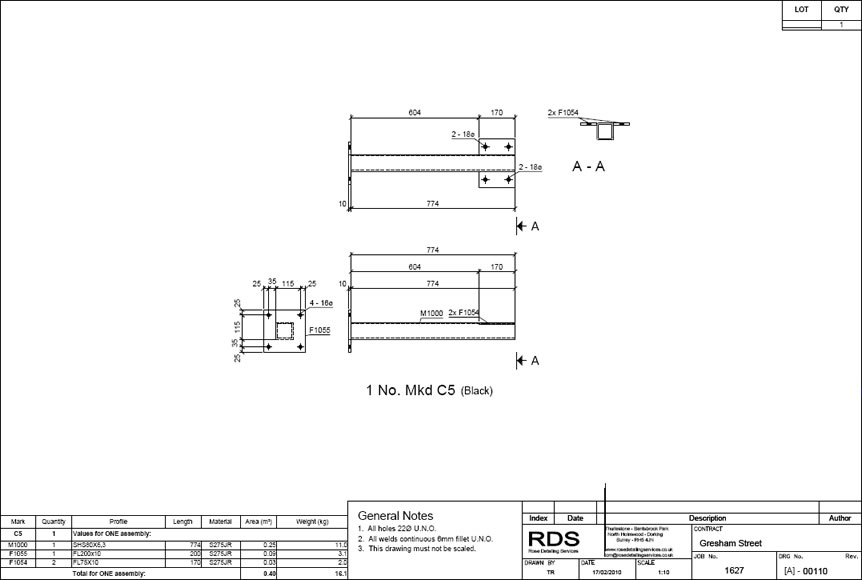

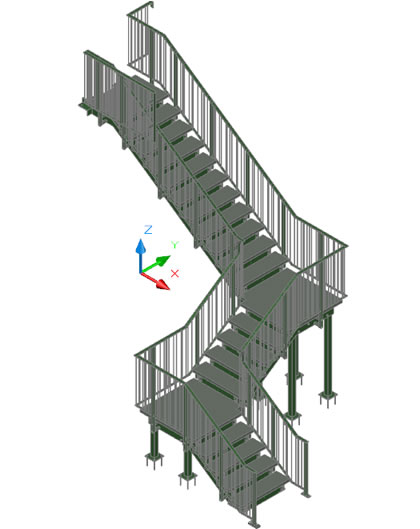

New steel stair from ground to basement at The Anthropologist Bar, Gresham Street, London. Flat plate stringers fabricated with cleats to support solid walnut treads. Penny bar type balustrade with random pattern 10mm diameter infill bars.

RDS: image 1 of 8 RDS: image 2 of 8 RDS: image 3 of 8 RDS: image 4 of 8



RDS: image 5 of 8 RDS: image 6 of 8 RDS: image 7 of 8 RDS: image 8 of 8

Click on a thumbnail image for a more detailed view
