The Anthropologist Bar

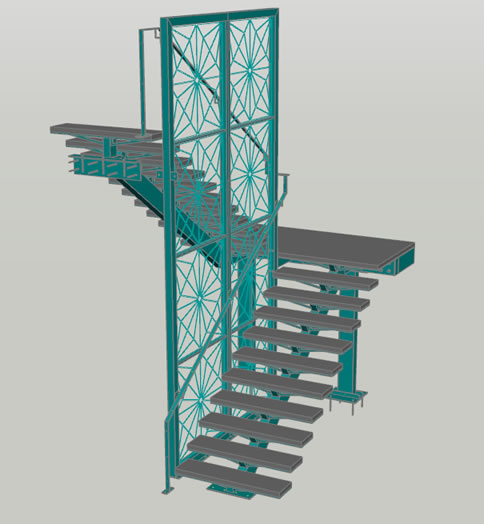

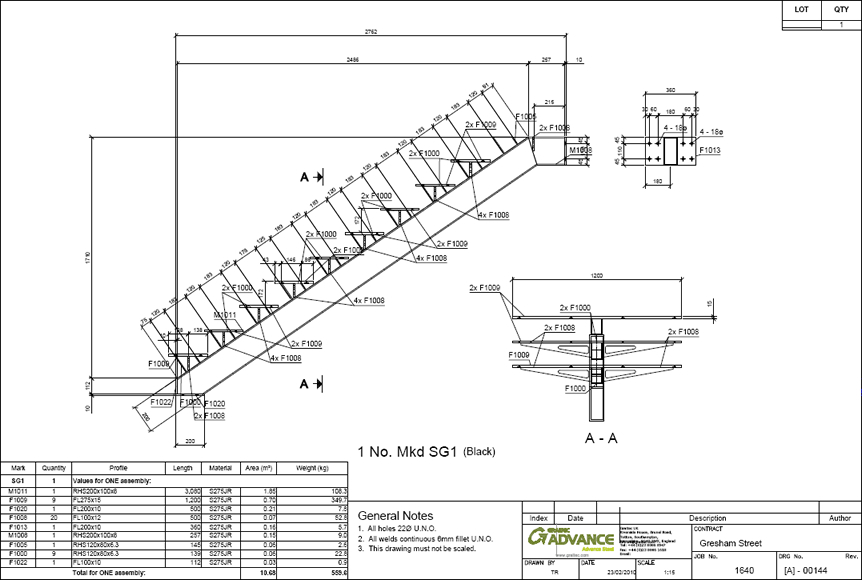

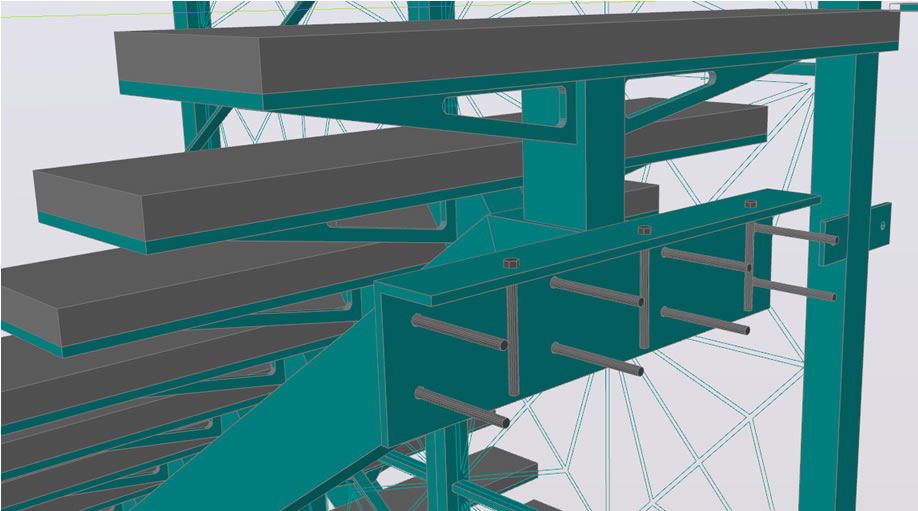

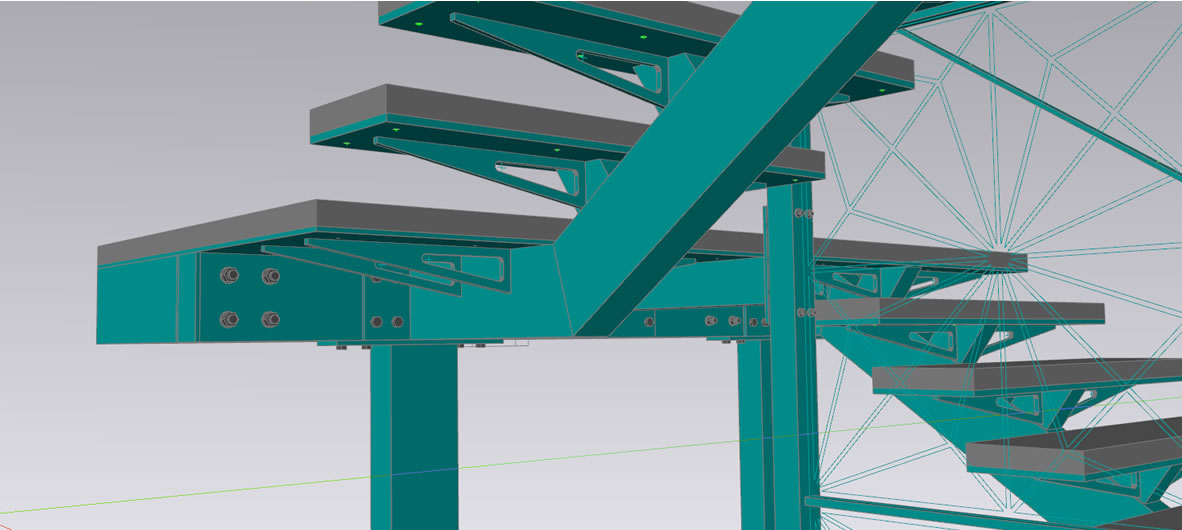

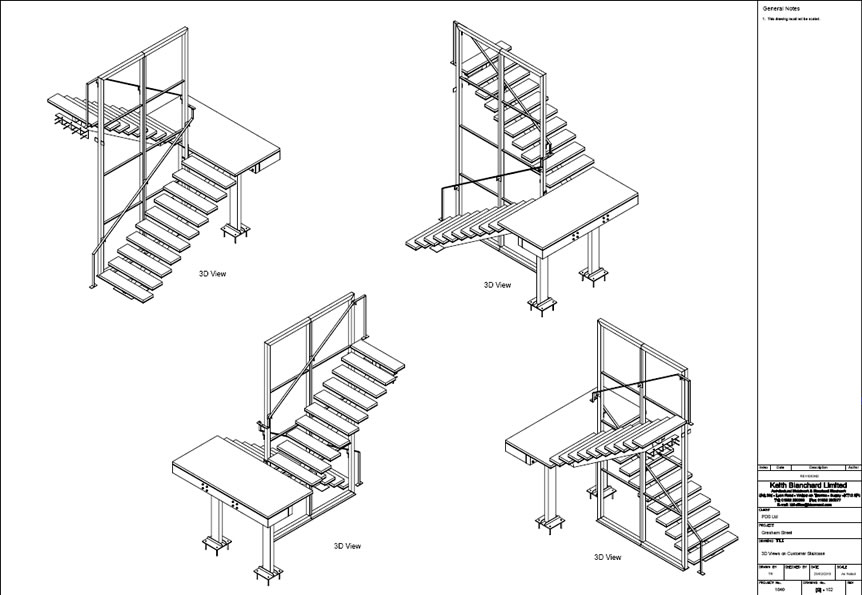

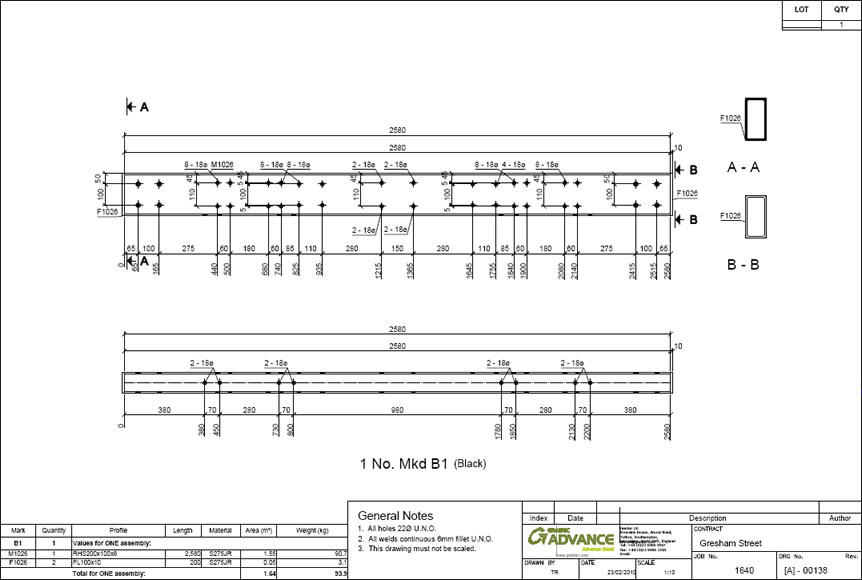

New steel stair from ground to basement at The Anthropologist Bar, Gresham Street, London. Central spine RHS stringers with flat tread plates, stiffened with laser profiled gussets to accommodate polished pre-cast concrete box treads. Feature metalwork panel to stairwell, framed with SHS with a laser profiled mild steel architectural infill panel.



Click on a thumbnail image for a more detailed view
