Thornbury Golf Club

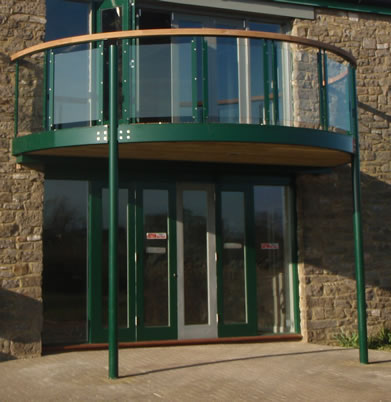

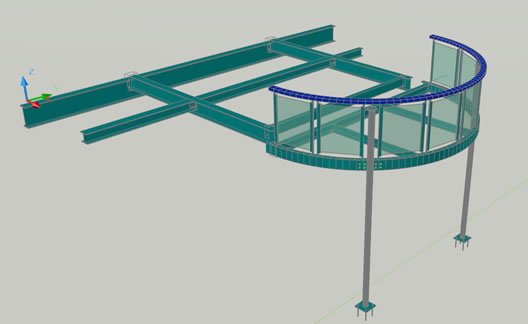

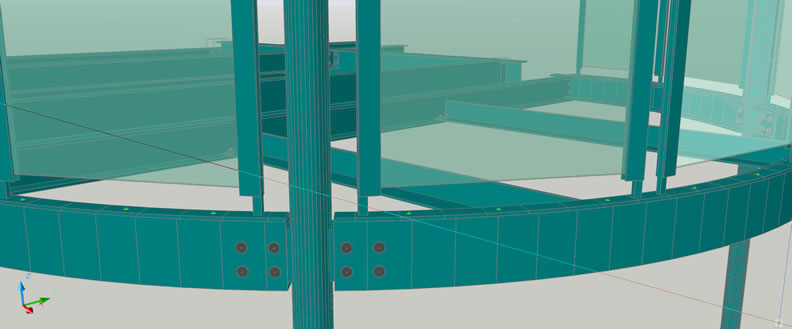

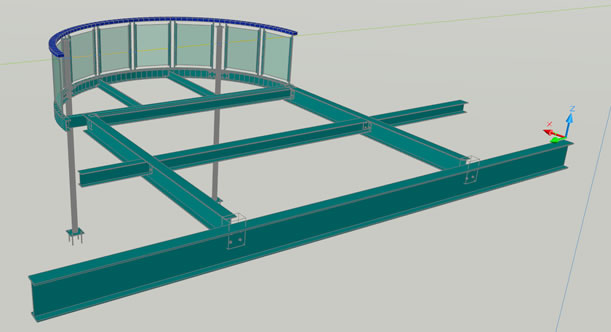

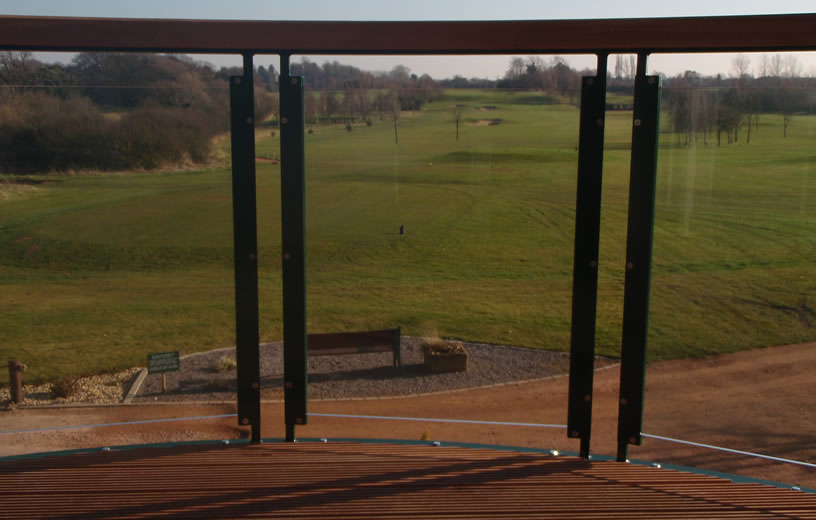

Construction of a new mezzanine floor and first floor balcony to Thornbury Golf Club. Balcony steelwork finished hot dipped galvanized & polyester powder coated after fabrication. 12mm thick clear toughened & heatsoaked glass panels to balcony balustrade.

RDS: image 5 of 9 RDS: image 6 of 9 RDS: image 7 of 9

RDS: image 8 of 9 RDS: image 9 of 9

Click on a thumbnail image for a more detailed view
